Chapter 4d: Handling Large Objects with On-Disk Caching

A common challenge with in-memory caches is managing large objects. Storing assets like high-resolution images, videos, or large JSON API responses directly in memory can quickly exhaust your server's RAM, leading to aggressive eviction of smaller, more frequently accessed items.

SpinelDB solves this problem with its hybrid on-disk caching mechanism. You can define a size threshold; any cacheable object larger than this threshold will be automatically streamed to a temporary file on disk instead of being stored in RAM.

This gives you the best of both worlds:

  • Speed: Small, hot data remains in memory for the lowest possible latency.
  • Capacity: Large, less frequently accessed objects are offloaded to disk, dramatically increasing your effective cache capacity without consuming precious RAM.

The entire process is transparent to the client. A CACHE.GET or CACHE.PROXY request works identically whether the item is in memory or on disk.

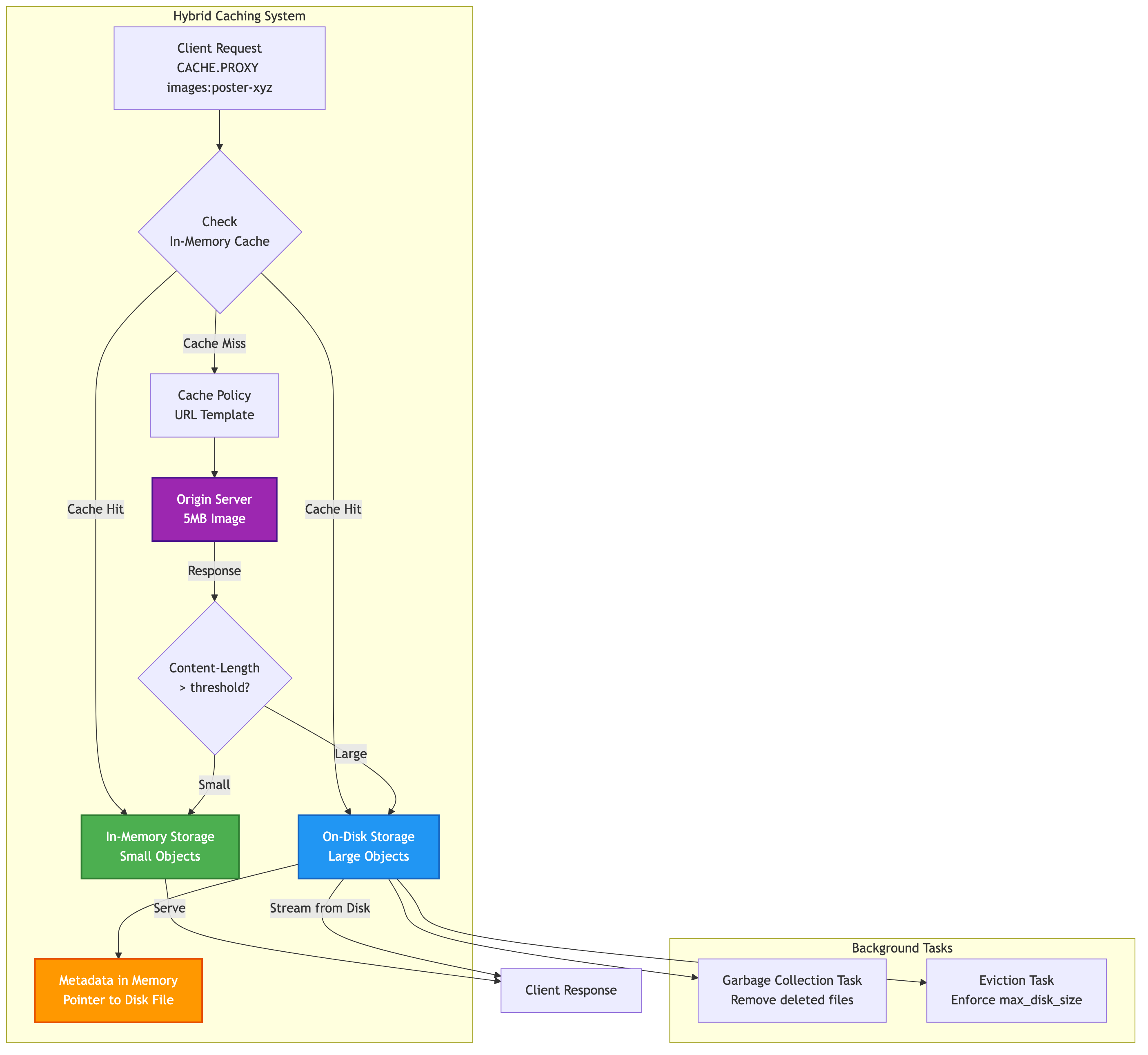

Hybrid On-Disk Caching Flow​

Hybrid On-Disk Caching Flow

1. Configuring On-Disk Caching​

On-disk caching is configured with two settings in your config.toml file, under the [cache] section, and can also be controlled via command options.

  • on_disk_path: The directory path where SpinelDB will store the cache files. The server must have write permissions to this directory.
  • streaming_threshold_bytes: The size in bytes. Any object returned from an origin server with a Content-Length header greater than this value will be streamed to disk.
  • max_disk_size: The maximum total size in bytes that the on-disk cache can occupy. If this limit is exceeded, SpinelDB will automatically evict the oldest files to free up space.

Example Configuration​

Let's configure SpinelDB to store any object larger than 1 megabyte on disk in a directory named spineldb_cache_files, with a total disk limit of 10 gigabytes.

# In your config.toml

[cache]
# The directory to store large cache files. It will be created if it doesn't exist.
on_disk_path = "spineldb_cache_files"

# Set the threshold to 1MB (1024 * 1024 bytes).
streaming_threshold_bytes = 1048576

# Set the maximum total disk size to 10GB (10 * 1024 * 1024 * 1024 bytes).
max_disk_size = 10737418240

Forcing On-Disk Storage with FORCE-DISK​

Even if an item is smaller than streaming_threshold_bytes, you can explicitly force it to be stored on disk using the FORCE-DISK option with CACHE.SET or CACHE.PROXY (via a CachePolicy). This is useful for items you know will grow large or if you want to minimize RAM usage for specific content.

127.0.0.1:7878> CACHE.SET small:image "<binary_data>" FORCE-DISK
OK

After setting this, restart your SpinelDB server for the changes to take effect.

2. The Workflow in Action​

You don't need to change any of your CACHE.* commands to use this feature. SpinelDB handles the logic automatically during the fetch process.

Let's trace a CACHE.PROXY request for a large file.

Scenario: A client requests CACHE.PROXY images:product:poster-xyz

  1. Cache Miss: SpinelDB checks for the key in memory and finds it's not there.
  2. Policy Lookup: It finds a matching cache policy with the URL https://cdn.myapp.com/images/poster-xyz.jpg.
  3. Origin Fetch: SpinelDB sends a GET request to the origin URL.
  4. Size Check: The origin responds with the image data and a Content-Length: 5000000 header (5 MB).
  5. Decision: SpinelDB sees that 5,000,000 bytes is greater than the configured streaming_threshold_bytes (1,048,576).
  6. Stream to Disk: Instead of buffering the 5 MB response in memory, SpinelDB creates a temporary file in the spineldb_cache_files directory and streams the response body directly into it.
  7. Store Metadata: Once the download is complete, SpinelDB stores the metadata for the cache item (TTL, SWR, tags, etc.) in its main in-memory database, along with a pointer to the file on disk. The large image data itself is not in RAM.
  8. Serve Client: SpinelDB serves the content to the original client.

Subsequent Requests​

When another client requests CACHE.PROXY images:product:poster-xyz:

  1. Cache Hit: SpinelDB finds the key in memory.
  2. Metadata Check: It sees that the body of the object is located on disk at a specific path.
  3. Stream from Disk: SpinelDB opens the file from disk and streams its contents directly to the client's socket. This is a significant performance optimization, as the large object is never fully loaded into the server's main memory, reducing memory pressure and improving throughput.

The object is served efficiently without ever being fully loaded into the server's main memory.

3. On-Disk Cache Management​

SpinelDB automatically manages the lifecycle of these on-disk files through two dedicated background tasks:

  1. Garbage Collection (OnDiskCacheGCTask): This task periodically scans the cache directory and the manifest file (spineldb-cache.manifest). It is responsible for:

    • Removing files that have been explicitly marked for deletion (PendingDelete status in the manifest) when their associated in-memory cache entry is removed (due to TTL expiration, DEL, CACHE.PURGE, or CACHE.PURGETAG).
    • Cleaning up any orphaned files that might have been left behind from an unclean shutdown or a failed write operation (Pending status in the manifest).

  2. Eviction (OnDiskCacheEvictionTask): This task enforces the max_disk_size limit. It periodically checks the total size of the committed cache files on disk. If the max_disk_size is exceeded, it will:

    • Identify the oldest files (based on their timestamp in the manifest).
    • Mark these files as PendingDelete in the manifest until the total disk usage falls below the configured limit. The actual file deletion is then handled by the Garbage Collection task.

This two-tiered approach ensures your disk usage doesn't grow indefinitely and that files are cleaned up efficiently.

Benefits of Hybrid Caching​

  • Vastly Increased Cache Capacity: Your cache is no longer limited by RAM but by available disk space, which is typically much cheaper and more plentiful.
  • Improved Memory Stability: Prevents large, infrequent requests from evicting many small, frequently used items, leading to a more stable cache hit ratio.
  • Reduced Memory Fragmentation: Offloading large allocations to the filesystem can help reduce memory fragmentation in the main server process over time.

This hybrid approach makes SpinelDB an exceptionally powerful and memory-efficient caching solution for a wide range of content types.
